Follow these steps to create a new JSON Schema Tool
1

Add a new Tool to a Project

Use the + button to add a new Entity to a Project.
Tool Add

Select JSON Schema Tool

2

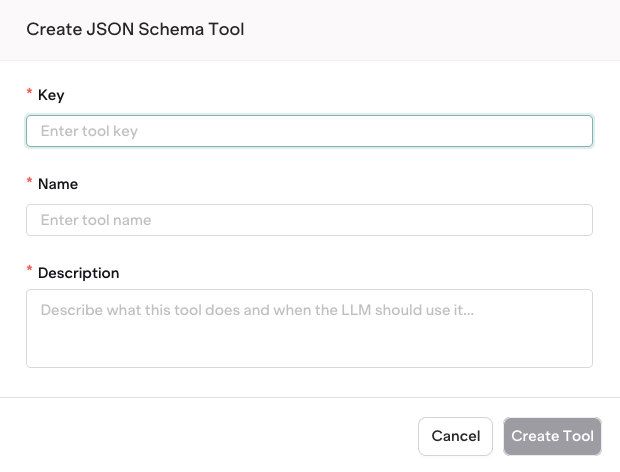

Enter Tool Details

Enter the main details of the tool:
  • Key, used by models to reference the tool
  • Name, used in the studio to find the tool
  • Description, used to describe the tool
    Make the Description as precise as possible, it is used notably by Agents when looking up relevant tools for their tasks.

Configure all fields

3

Configure your JSON Schema Tool

JSON Schema Tools are defined using JSON.Here is an example of a JSON schema for a function get_current_weather that declares the fields location (string)and unit (string):
{
  "type": "object",
  "properties": {
    "unit": {
      "type": "string",
      "description": "The temperature unit, e.g. Celsius"
    },
    "location": {
      "type": "string",
      "description": "The city and state, e.g. San Francisco, CA"
    }
  },
  "required": [
    "location",
    "unit"
  ]
}
The object defined here is based on JSON Schema. This framework allows for extensible definition that fit your ideal function definition.

​
Field Details

​
Type

Use here any of the valid JSON types: object, string, integer, number, array, etc… The top-level type will most commonly be an object holding other properties.Learn more about all JSON types in the JSON Schema definition.

​
Properties

Properties are definition of fields within an object. Here you can define any new variable. Nested properties are allowed.

​
Required

The required array within an object defines which fields must be entered for a JSON payload to be validated.
