Integrate LangGraph with Orq.ai

Objective

Start with a working LangGraph agent and put Orq.ai behind it: route its model calls through the AI Gateway, ground its answers in a Knowledge Base, and record each run in Traces. The agent logic itself barely changes.

Use Case

Reach for this pattern when:

An agent is already built on LangChain or LangGraph.
Standing up a vector database and juggling provider API keys is not worth the overhead.
Seeing what the agent actually did at runtime matters for debugging.

Prerequisites

Orq.ai Account: Active workspace in the AI Studio. Create an account to get started.
API Access: Valid API key from Workspace Settings > API Keys.
Model Access: At least one model enabled in the AI Gateway, see Using the AI Gateway.
Python: Version 3.9 or higher.

Step 1: Install and set up the SDK

Install Orq.ai alongside LangGraph and the LangChain packages.

pip install orq-ai-sdk langgraph langchain langchain-openai openai python-dotenv

import os
from dotenv import load_dotenv
from orq_ai_sdk import Orq

load_dotenv()
ORQ_API_KEY = os.environ["ORQ_API_KEY"]

orq = Orq(
    api_key=ORQ_API_KEY
)

Step 2: Turn on tracing

Tracing is one call. orq_tracing_setup hooks into LangChain’s callback system, so every agent run, tool call, and model response streams to Orq.ai with no further changes to the agent.

Python

from orq_ai_sdk.langchain import setup as orq_tracing_setup
orq_tracing_setup(api_key=ORQ_API_KEY)

Step 3: Create a LangGraph agent with the router

Point a standard LangChain ChatOpenAI model at the Orq.ai router by overriding base_url. From there the agent is ordinary LangGraph: create_agent is LangChain’s prebuilt constructor that compiles a LangGraph agent under the hood, here wired with one example tool.

Python

from langchain_openai import ChatOpenAI
from langchain_core.tools import tool
from langchain.agents import create_agent
# Router: a LangChain model pointed at Orq
model = ChatOpenAI(
    model="openai/gpt-5.4-mini",
    base_url="https://api.orq.ai/v3/router",
    api_key=ORQ_API_KEY,
)

## Example tool
@tool
def get_order_count(city: str) -> str:
    """Get the number of orders for a given city."""
    return f"{city} had 1,240 orders last month."

tools = [get_order_count]

agent_prompt = "You are a helpful assistant."

agent = create_agent(model, tools=tools, system_prompt=agent_prompt)

Step 4: Test the agent

A small helper wraps the agent call so the later steps stay short. The agent picks the tool, runs it, and returns the answer.

Python

def ask_agent(message, agent):
    messages = {"messages": [{"role": "user", "content": message}]}
    res = agent.invoke(messages)
    print(res["messages"][-1].content)

Python

ask_agent("How many orders in Amsterdam?", agent)

The agent responds:

Amsterdam had 1,240 orders last month.

Step 5: Switch models through the router

The router addresses models with a provider/model string, so switching providers is a one-line change. Nothing else moves: the agent, tools, and prompt all stay as they were.

Python

# The router means switching providers is a one-line change —
# same agent, same code, different model behind it.
model = ChatOpenAI(
    model="anthropic/claude-sonnet-4-6",
    base_url="https://api.orq.ai/v3/router",
    api_key=ORQ_API_KEY,
)
agent = create_agent(model, tools=tools, system_prompt=agent_prompt)
ask_agent("How many orders in Amsterdam?", agent)

The same agent now answers through a different provider:

There were **1,240 orders** in Amsterdam last month! Let me know if you need any further details or want to check other cities.

Step 6: Set up the Knowledge Base

Ground the agent in real documents with a Knowledge Base. This takes three calls: create the Knowledge Base, upload the source file, then create a datasource that chunks and indexes it. Create the Knowledge Base and keep its id to reference it later.

Python

res = orq.knowledge.create(
    request={
        "key": "CustomerServicePolicies",
        #embedding model in "provider/model" format
        "embedding_model": "openai/text-embedding-3-small",
        #folder path in the orq UI (auto-created if it doesn't exist)
        "path": "customerService",
        "description": "Customer service documentation",
    }
)

knowledge_id = res.id
print("Knowledge created")

Upload the source document. The file is sent as base64-encoded content.

Python

import base64

# ↓ path to the document you want to index
FILE_PATH = "files/refundpolicy.pdf"

with open(FILE_PATH, "rb") as f:
    encoded = base64.b64encode(f.read()).decode("utf-8")

res = orq.files.create(
    filename=os.path.basename(FILE_PATH),
    content=encoded,
    content_type="application/pdf",
)

file_id = res.file.file_id
print("File added")

Create a datasource to chunk and embed the file. Chunking runs asynchronously, so poll the datasource until its status is completed. To tune chunk size and overlap, see Chunking Strategy.

Python

import time

res = orq.knowledge.create_datasource(
    knowledge_id=knowledge_id,
    file_id=file_id,
    chunking_options={
        # "default" uses orq's automatic chunking strategy
        # switch to "advanced" to control chunk_max_characters and chunk_overlap
        "chunking_configuration": {"type": "default"}
    },
)

datasource_id = res.id

# Poll until indexing finishes
while True:
    ds = orq.knowledge.retrieve_datasource(
        knowledge_id=knowledge_id,
        datasource_id=datasource_id,
    )
    print(f"  status: {ds.status}")
    if ds.status in ("completed", "failed"):
        break
    time.sleep(2)

print(f"Done — {int(ds.chunks_count)} chunks indexed")

The poll reports each status until indexing completes:

  status: queued
  status: queued
  status: completed
Done — 19 chunks indexed

Step 7: Add the Knowledge Base search tool

Expose the Knowledge Base to the agent as a tool. search_policy runs a retrieval query and returns the matching chunks, and the system prompt forces the agent to call it before answering.

Python

@tool
def search_policy(query: str) -> str:
    """Search the company policy knowledge base for relevant passages."""
    results = orq.knowledge.search(knowledge_id=knowledge_id, query=query)
    relevant_chunks = []
    for match in results.matches:
        relevant_chunks.append(match.text)
    output = "\n\n".join(relevant_chunks) if len(relevant_chunks) > 0 else "No relevant policy found."
    return output

tools.append(search_policy)

agent_prompt = "You are a customer support assistant, and will help customers with any questions. Before responding you must use the search_policy tool to ground your answer."

agent = create_agent(model, tools=tools, system_prompt=agent_prompt)

Step 8: Ask a grounded question

Ask something that can only be answered from the uploaded policy. The agent calls search_policy first, then answers from the chunks it retrieves.

Python

ask_agent("I got delivered the wrong item, can I get a refund?", agent)

The agent answers from the policy document:

Yes, absolutely! Based on our policy, you are eligible for a **full refund** for the wrong item. Here's what you need to know:

**Eligibility Requirements:**
1. You must report the wrong item **within 45 minutes of delivery**.
2. You'll need to **provide a photo** of the delivered item showing the discrepancy.
3. The item must differ from your order in a material way (e.g., you received a Margherita pizza instead of a Pepperoni pizza).

**What You'll Receive:**
- A **full refund** to your original payment method.
- Optionally, a **replacement delivery at no extra cost** if you'd prefer that and the restaurant is still open.

To get the process started, could you please share:
- A **photo of the wrong item** you received.
- Confirmation that you're reporting this **within 45 minutes of delivery**.

Once we have that, we'll get your refund sorted right away! 😊

Step 9: Check the Traces

Open AI Studio > Observability > Traces to inspect any run: the user message, the tool calls, the retrieved chunks, the model responses, and the timings. The setup from Step 2 already captures all of it, with nothing else to add.

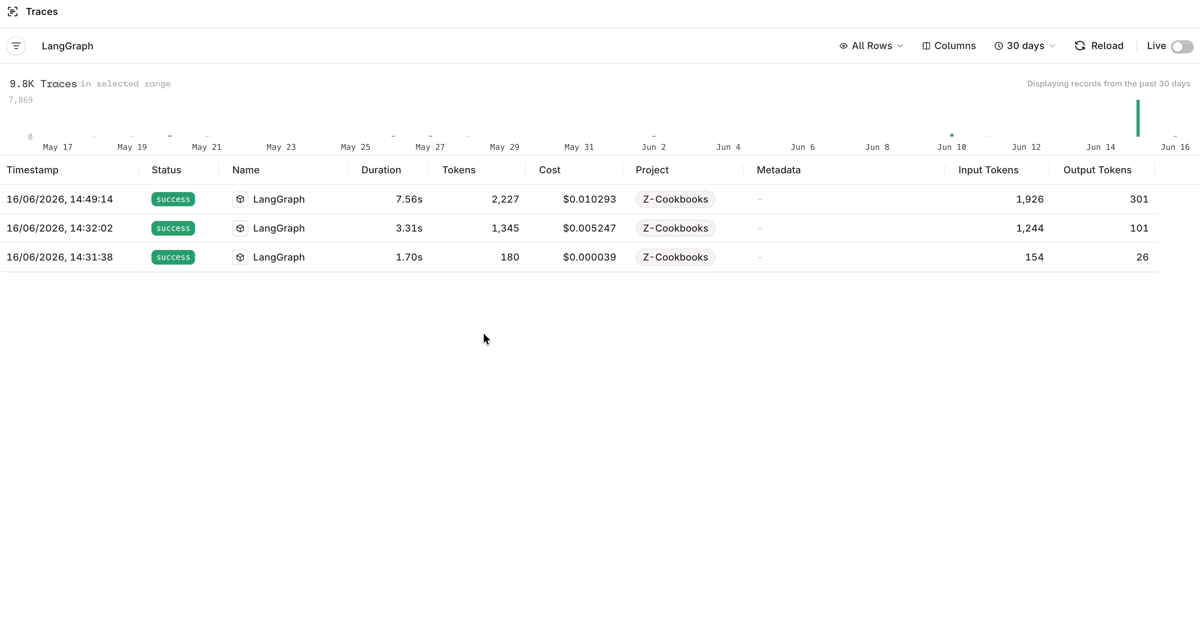

The traces viewed in the AI Gateway of calling the created agent. — Traces of the LangGraph agent call

To learn more about Traces see Traces.

The LangGraph agent now runs on Orq.ai for routing, retrieval, and observability. Swap the model, the Knowledge Base, or the prompt without rewriting the agent loop.

Simple RAG

Build the same retrieval flow as a standalone deployment, without a framework.

Advanced RAG

Layer more retrieval techniques on top of a Knowledge Base.

LangGraph framework reference

AI Gateway and OpenTelemetry observability details for LangGraph.
