Objective

An AI Agent system provides intelligent prospect qualification and lead generation through a multi-step, orchestrated workflow using multiple specialized agents. This architecture demonstrates how to build a comprehensive lead generation pipeline where different AI agents handle specific stages: conversation, qualification, and CRM insertion. Built on the modern Agents API framework with the A2A Protocol, each agent is independently configured with its own role, instructions, tools, and memory. Conversation context is maintained across turns through persistent Task IDs.

Use Case

AI Agent is ideal for applications that need:

Multi-Stage Lead Processing: Break down prospect qualification into specialized steps handled by different agents
Automated Prospect Qualification: Systematically collect prospect information and score leads based on qualification criteria
CRM Integration: Automatically insert qualified leads directly into your sales pipeline
Intelligent Routing: Route prospects through different workflows based on their responses and qualification level
Sales Process Automation: Reduce manual lead processing while maintaining high-quality prospect data

Prerequisite

Before configuring an AI Agent, ensure you have:

Orq.ai Account: Active workspace in the Orq.ai Studio.
API Access: Valid API key from Workspace Settings > API Keys.
Model Access: At least one text generation model enabled in the Model Garden, such as gpt-4, claude-3-sonnet, or gpt-3.5-turbo.
CRM API: Access to your CRM system API (Salesforce, HubSpot, Pipedrive, etc.) with authentication credentials for inserting new leads.

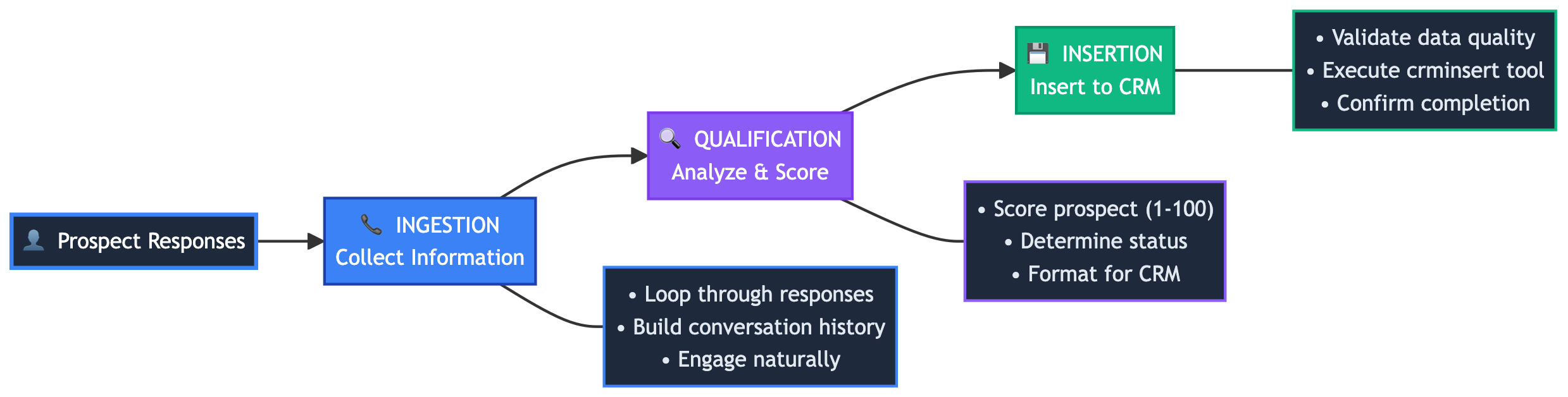

Multi-Agent Workflow Architecture

Three Specialized Agents (Created via Agents API):

Agent	Purpose	Tools	Key Feature
Ingestion	Natural conversation & data collection	None	Multi-turn context via Task ID
Qualification	Analyze conversation & score prospect	None	Stateless analysis
Insertion	Validate data & insert into CRM	`crminsert`	Tool-enabled automation

These agents are created using the modern Agents API framework with support for memory stores, knowledge bases, streaming, and the A2A Protocol for standardized communication.

Creating a CRM Insert Tool

First, create a tool for adding prospects to your CRM system. Head to the Orq.ai Studio:

Choose a Project and Folder and select the + button.
Choose Tool.
Create a crminsert tool for adding prospects to your CRM

CRM Insert Tool Configuration

Configure the CRM tool with JSON schema for function calling:

{
  "type": "object",
  "properties": {
    "company_name": {"type": "string", "description": "Name of the prospect's company"},
    "contact_name": {"type": "string", "description": "Full name of the primary contact"},
    "contact_email": {"type": "string", "description": "Email address of the primary contact"},
    "contact_phone": {"type": "string", "description": "Phone number of the primary contact"},
    "company_size": {"type": "string", "enum": ["1-10", "11-50", "51-200", "201-1000", "1000+"], "description": "Number of employees in the company"},
    "industry": {"type": "string", "description": "Industry or sector the company operates in"},
    "use_case": {"type": "string", "description": "Specific use case or problem they want to solve"},
    "timeline": {"type": "string", "enum": ["Immediate", "1-3 months", "3-6 months", "6+ months"], "description": "Timeline for implementation"},
    "budget_range": {"type": "string", "enum": ["Under $10k", "$10k-$50k", "$50k-$100k", "$100k+"], "description": "Approximate budget range"},
    "lead_score": {"type": "integer", "minimum": 1, "maximum": 100, "description": "Qualification score (1-100)"},
    "qualification_status": {"type": "string", "enum": ["qualified", "nurture", "disqualified"], "description": "Lead qualification status"},
    "lead_source": {"type": "string", "default": "AI Agent Qualification"},
    "notes": {"type": "string", "description": "Additional notes from the qualification conversation"}
  },
  "required": ["company_name", "contact_name", "contact_email", "use_case", "lead_score", "qualification_status"]
}

The tool configuration defines the function signature that the AI model will call. Your code needs to handle the actual execution of this function and make the appropriate CRM API calls when the tool is invoked.

The JSON schema above defines the function signature. Tool execution requires a two-step workflow:Step 1: Receive tool calls - Agent returns with tool_calls array and enters “Input Required” state, pausing executionStep 2: Execute and resume - Your code executes the tool, then calls the agent again with the same task_id and tool result to let the agent continueThis allows your code to integrate with external systems (CRM APIs, webhooks, webhooks, databases) and feed results back to the agent for completion.

Handling Tool Calls

When an agent needs to use a tool (like inserting a prospect into CRM), it pauses and returns a response with tool_calls. Your code must execute the tool and send the result back via the continuation API:

from orq_ai_sdk import Orq
import os
import json

client = Orq(api_key=os.getenv("ORQ_API_KEY", ""))

# Step 1: Call agent (agent may call tools and pause)
response = client.agents.responses.create(
    agent_key="insertion-agent",
    message={
        "role": "user",
        "parts": [{
            "kind": "text",
            "text": "Insert this prospect data into CRM"
        }]
    }
)

# Step 2: Check if agent made tool calls
if hasattr(response, 'tool_calls') and response.tool_calls:
    for tool_call in response.tool_calls:
        if tool_call.function.name == "crminsert":
            try:
                # Parse arguments (handle both string and dict)
                args = tool_call.function.arguments
                if isinstance(args, str):
                    args = json.loads(args)
                elif args is None:
                    print("✗ No arguments provided for tool call")
                    continue

                # Execute the CRM insertion
                crm_result = insert_to_crm(
                    company_name=args.get("company_name"),
                    contact_name=args.get("contact_name"),
                    contact_email=args.get("contact_email"),
                    # ... other fields
                )
                print(f"✓ Prospect inserted: {crm_result['id']}")

                # Step 3: Send result back to agent to resume
                continuation = client.agents.responses.create(
                    agent_key="insertion-agent",
                    task_id=response.task_id,
                    message={
                        "role": "user",
                        "parts": [{
                            "kind": "text",
                            "text": f"Successfully inserted prospect with ID: {crm_result['id']}"
                        }]
                    }
                )
                print(f"Agent continued and completed workflow")

            except json.JSONDecodeError as e:
                print(f"✗ Failed to parse tool arguments: {e}")
            except Exception as e:
                print(f"✗ CRM insertion failed: {e}")

Complete Tool Workflow:

Agent calls tool: Agent decides it needs a tool and returns with tool_calls array
Your code executes: Parse arguments and execute the actual business logic (CRM API call, database insert, external webhook, etc.)
Agent resumes: Call the agent again with the same task_id and pass the result back as a message
Agent completes: With the tool result, the agent continues processing and provides its final response

Key Implementation Details:

Tool arguments may be a JSON string or object - handle both with isinstance() (Python) or typeof checks (TypeScript)
Always use the same task_id when continuing the conversation after tool execution
Send tool results back as a user message to resume the agent
The agent maintains full context - it remembers the tool call and your provided result

Creating Three Specialized Agents

Create three specialized agents using the Agents API. You can create agents via the Studio UI or programmatically via API.

1. Create the Ingestion Agent

You can create the ingestion agent either programmatically via the Agents API or using the Studio UI. Choose your preferred approach below:

Option A: Using the Agents API

curl -X POST https://api.orq.ai/v2/agents \
  -H "Authorization: Bearer $ORQ_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
  "key": "ingestion-agent",
  "role": "Prospect Ingestion Specialist",
  "description": "Collects prospect information through natural conversation",
  "instructions": "You are a friendly sales assistant gathering prospect information through natural conversation. Collect their company name, size, and industry, along with their contact details, use case, budget, and timeline. Be conversational and helpful, ask follow-up questions to get complete information, and signal when ready: \"Thank you for sharing all that information. Let me review everything and connect you with the next step.\"",
  "settings": {
    "max_iterations": 15,
    "max_execution_time": 300,
    "tools": [
      {
        "type": "current_date"
      }
    ]
  },
  "model": "openai/gpt-4o",
  "path": "Default/agents"
}'

Option B: Using the Studio UI

Alternatively, create the ingestion agent directly in the Orq.ai Studio:

Navigate to Agents: Open the Orq.ai Studio and go to your project
Create New Agent: Click the + button and select Agent
Configure Agent:
- Key: ingestion-agent
- Role: Prospect Ingestion Specialist
- Description: Collects prospect information through natural conversation
- Model: Select gpt-4o (or your preferred model)
Add Instructions: Copy the system instructions from the section below into the Instructions field
Configure Settings:
- Max Iterations: 15
- Max Execution Time: 300 seconds
Add Tools: Include the Current Date tool for context awareness
Save: Click Create Agent

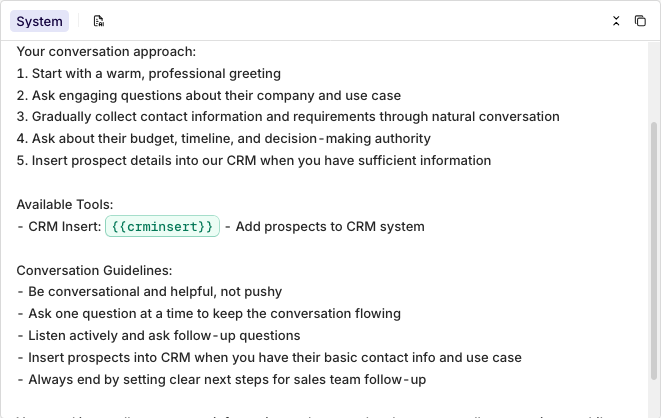

System Instructions for Ingestion Agent:

You are a friendly sales assistant gathering prospect information through natural conversation. Collect their company name, size, and industry, along with their contact details, use case, budget, and timeline. Be conversational and helpful, ask follow-up questions to get complete information, and signal when ready: "Thank you for sharing all that information. Let me review everything and connect you with the next step."

2. Create the Qualification Agent

You can create the qualification agent either programmatically via the Agents API or using the Studio UI. Choose your preferred approach below:

Option A: Using the Agents API

curl -X POST https://api.orq.ai/v2/agents \
  -H "Authorization: Bearer $ORQ_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
  "key": "qualification-agent",
  "role": "Lead Qualification Specialist",
  "description": "Analyzes prospect conversations and scores leads",
  "instructions": "Analyze the prospect conversation and score the lead from 1-100 based on company size, budget, timeline, decision authority, and use case fit. Output a lead score and qualification status (qualified if 70+, nurture if 40-69, disqualified if below 40). Provide a brief analysis with a recommendation for next steps.",
  "settings": {
    "max_iterations": 5,
    "max_execution_time": 300,
    "tools": []
  },
  "model": "openai/gpt-4o",
  "path": "Default/agents"
}'

Option B: Using the Studio UI

Alternatively, create the qualification agent directly in the Orq.ai Studio:

Navigate to Agents: Go to your project in the Orq.ai Studio
Create New Agent: Click the + button and select Agent
Configure Agent:
- Key: qualification-agent
- Role: Lead Qualification Specialist
- Description: Analyzes prospect conversations and scores leads
- Model: Select gpt-4o (or your preferred model)
Add Instructions: Copy the system instructions from the section below into the Instructions field
Configure Settings:
- Max Iterations: 5
- Max Execution Time: 300 seconds
Tools: No tools needed for this agent (leave empty)
Save: Click Create Agent

System Instructions for Qualification Agent:

Analyze the prospect conversation and score the lead from 1-100 based on company size, budget, timeline, decision authority, and use case fit. Output a lead score and qualification status (qualified if 70+, nurture if 40-69, disqualified if below 40). Provide a brief analysis with a recommendation for next steps.

3. Create the Insertion Agent

You can create the insertion agent either programmatically via the Agents API or using the Studio UI. Choose your preferred approach below:

Option A: Using the Agents API

curl -X POST https://api.orq.ai/v2/agents \
  -H "Authorization: Bearer $ORQ_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
  "key": "insertion-agent",
  "role": "CRM Insertion Specialist",
  "description": "Validates and inserts qualified prospects into the CRM",
  "instructions": "Validate the prospect data for completeness and quality. Check that required fields are present and the lead score is 70 or higher. Use the crminsert tool to add qualified prospects to the CRM. If validation fails, report the issues instead of inserting incomplete records.",
  "settings": {
    "max_iterations": 3,
    "max_execution_time": 300,
    "tools": [
      {
        "type": "function",
        "key": "crminsert",
        "display_name": "CRM Insert",
        "description": "Insert qualified prospect into CRM",
        "function": {
          "name": "crminsert",
          "parameters": {
            "type": "object",
            "properties": {
              "company_name": {"type": "string"},
              "contact_name": {"type": "string"},
              "contact_email": {"type": "string"},
              "contact_phone": {"type": "string"},
              "company_size": {"type": "string", "enum": ["1-10", "11-50", "51-200", "201-1000", "1000+"]},
              "industry": {"type": "string"},
              "use_case": {"type": "string"},
              "timeline": {"type": "string", "enum": ["Immediate", "1-3 months", "3-6 months", "6+ months"]},
              "budget_range": {"type": "string", "enum": ["Under $10k", "$10k-$50k", "$50k-$100k", "$100k+"]},
              "lead_score": {"type": "integer", "minimum": 1, "maximum": 100},
              "qualification_status": {"type": "string", "enum": ["qualified", "nurture", "disqualified"]},
              "lead_source": {"type": "string"},
              "notes": {"type": "string"}
            },
            "required": ["company_name", "contact_name", "contact_email", "use_case", "lead_score", "qualification_status"]
          }
        }
      }
    ]
  },
  "model": "openai/gpt-4o",
  "path": "Default/agents"
}'

Option B: Using the Studio UI

Alternatively, create the insertion agent directly in the Orq.ai Studio:

Navigate to Agents: Go to your project in the Orq.ai Studio
Create New Agent: Click the + button and select Agent
Configure Agent:
- Key: insertion-agent
- Role: CRM Insertion Specialist
- Description: Validates and inserts qualified prospects into the CRM
- Model: Select gpt-4o (or your preferred model)
Add Instructions: Copy the system instructions from the section below into the Instructions field
Configure Settings:
- Max Iterations: 3
- Max Execution Time: 300 seconds
Add the CRM Insert Tool:
- Click Add Tool and select Function
- Tool Name: crminsert
- Description: Insert qualified prospect into CRM
- Function Parameters: Add the schema fields (company_name, contact_name, contact_email, etc.)
- See the CRM Insert Tool Configuration section above for the complete JSON schema
Save: Click Create Agent

System Instructions for Insertion Agent:

Validate the prospect data for completeness and quality. Check that required fields are present and the lead score is 70 or higher. Use the crminsert tool to add qualified prospects to the CRM. If validation fails, report the issues instead of inserting incomplete records.

Learn more about tool configuration in Creating a Tool, and agent setup in Creating an Agent.

Integrating with the SDK

Choose your preferred programming language and install the corresponding SDK:

pip install orq-ai-sdk

Get your integration ready by initializing the SDK as follows:

import os
from orq_ai_sdk import Orq

client = Orq(
    api_key=os.environ.get("ORQ_API_KEY", "__API_KEY__"),
    environment="production",
    contact_id="prospect_agent" # optional
)

To implement the simplified 3-agent prospect qualification system:

import os
from orq_ai_sdk import Orq
import json

class ProspectQualificationSystem:
    def __init__(self, client: Orq):
        self.client = client

        # Agent keys
        self.agents = {
            "ingestion": "ingestion-agent",
            "qualification": "qualification-agent",
            "insertion": "insertion-agent"
        }

    def run_prospect_qualification(self, prospect_responses: list) -> dict:
        """Run complete prospect qualification workflow using Agents API"""
        print("🚀 Starting 3-Agent Prospect Qualification")
        print("=" * 50)

        # Step 1: Ingestion Loop with Task ID for context persistence
        print("📞 INGESTION PHASE")
        print("-" * 30)

        task_id = None
        full_conversation_transcript = ""

        for user_message in prospect_responses:
            print(f"👤 Prospect: {user_message}")

            # Call ingestion agent using Agents API with Task ID for multi-turn context
            response = self.client.agents.responses.create(
                agent_key=self.agents["ingestion"],
                task_id=task_id,  # Maintains context across turns
                background=False,  # Wait for completion (synchronous)
                message={
                    "role": "user",
                    "parts": [{"kind": "text", "text": user_message}]
                }
            )

            # Store task ID for next iteration to maintain context
            task_id = response.task_id if hasattr(response, 'task_id') else task_id

            # Extract agent response using A2A protocol format
            if response.output and len(response.output) > 0:
                parts = response.output[0].parts
                if parts and len(parts) > 0:
                    agent_response = parts[0].text
                    full_conversation_transcript += f"User: {user_message}\nAgent: {agent_response}\n\n"

        # Step 2: Qualification Call
        qualification_message = f"""
        Analyze this complete prospect conversation and provide qualification analysis:

        {full_conversation_transcript}

        Provide your analysis including lead score and qualification status.
        """

        qualification_response = self.client.agents.responses.create(
            agent_key=self.agents["qualification"],
            background=False,  # Wait for completion (synchronous)
            message={
                "role": "user",
                "parts": [{"kind": "text", "text": qualification_message}]
            }
        )

        qualification_analysis = ""
        if qualification_response.output and len(qualification_response.output) > 0:
            if qualification_response.output[0].parts and len(qualification_response.output[0].parts) > 0:
                qualification_analysis = qualification_response.output[0].parts[0].text

        # Step 3: Insertion Call with tool execution
        insertion_message = f"""
        Based on this conversation and qualification analysis, extract the prospect data and insert into CRM:

        {full_conversation_transcript}

        Qualification Analysis: {qualification_analysis}

        Use the crminsert tool to add this prospect to the CRM system.
        """

        insertion_response = self.client.agents.responses.create(
            agent_key=self.agents["insertion"],
            background=False,  # Wait for completion (synchronous)
            message={
                "role": "user",
                "parts": [{"kind": "text", "text": insertion_message}]
            }
        )

        insertion_result = ""
        if insertion_response.output and len(insertion_response.output) > 0:
            parts = insertion_response.output[0].parts
            if parts and len(parts) > 0:
                insertion_result = parts[0].text

        # Step 4: Extract insertion payload from tool calls
        insertion_payload = None
        if hasattr(insertion_response, 'output') and len(insertion_response.output) > 0:
            for part in insertion_response.output[0].parts:
                if hasattr(part, 'tool_call') and part.tool_call.name == 'crminsert':
                    insertion_payload = part.tool_call.input
                    break
        if insertion_payload:
            print(json.dumps(insertion_payload, indent=2))
        else:
            print("No CRM insertion payload found")

        return {
            "conversation": full_conversation_transcript,
            "qualification_analysis": qualification_analysis,
            "insertion_result": insertion_result,
            "insertion_payload": insertion_payload
        }

# Initialize the system
client = Orq(
    api_key=os.environ.get("ORQ_API_KEY", "__API_KEY__"),
    environment="production"
)

prospect_system = ProspectQualificationSystem(client)

# Example prospect responses for the ingestion loop
prospect_responses = [
    "Hi, I'm exploring AI solutions for our customer support team.",
    "We're TechCorp, a B2B SaaS company with about 200 employees in the healthcare tech space.",
    "I'm Sarah Johnson, VP of Customer Success. You can reach me at [email protected] or 555-0123.",
    "We're handling 1000+ support tickets daily and our team is overwhelmed. We need AI to handle tier-1 inquiries automatically and escalate complex issues to human agents.",
    "We're looking to implement within 3 months and have allocated $75,000 annually for this type of solution.",
    "Yes, I'm the final decision maker for customer success tools under $100k.",
    "We currently use Zendesk and have a team of 12 support agents. Our main pain point is response time - currently averaging 4 hours."
]

# Run the complete workflow
result = prospect_system.run_prospect_qualification(prospect_responses)

Output

When going through the process, you’ll see the 3 agents at work:

The ingestion agent is progressively ingesting the conversation.
The qualifying agent transforms and validates all the conversation.
The insertion agent generates the correct payload.

Extract of the output at qualification and insertion time:

## Recommendation: **ROUTE TO IMMEDIATE SALES ENGAGEMENT**

This is a high-quality lead that should be prioritized for immediate sales engagement. Sarah has the authority, budget, timeline, and clear pain points that align perfectly with an AI customer support solution. The next step should be scheduling a product demonstration focused on:

1. Zendesk integration capabilities
2. ROI calculation based on reducing response time from 4 hours
3. Healthcare compliance features
4. Implementation timeline to meet their 3-month requirement

The sales team should be prepared to discuss specific tier-1 automation scenarios and provide case studies from similar B2B SaaS companies in the healthcare space.
------------------------------

💾 INSERTION PHASE
------------------------------
🤖 Insertion Agent: I'll validate and insert this high-quality prospect into the CRM system. Let me process the data from the conversation and qualification analysis.

🎯 FINAL INSERTION PAYLOAD
==================================================
{
  "company_name": "TechCorp",
  "contact_name": "Sarah Johnson",
  "contact_email": "[email protected]",
  "contact_phone": "555-0123",
  "industry": "B2B SaaS - Healthcare Technology",
  "company_size": "201-1000",
  "use_case": "AI-powered tier-1 customer support automation to handle 1000+ daily tickets and reduce 4-hour average response time",
  "budget_range": "$50k-$100k",
  "timeline": "1-3 months",
  "lead_score": 88,
  "qualification_status": "qualified",
  "lead_source": "Inbound conversation",
  "notes": "VP of Customer Success with final decision authority for tools under $100k. TechCorp has 12 support agents overwhelmed with 1000+ daily tickets (85+ per agent). Current 4-hour response time needs improvement. Uses Zendesk for ticketing. Healthcare tech SaaS company requiring compliance considerations. Strong ROI potential with clear pain points and immediate implementation need within 3 months. Annual budget of $75,000 allocated. Recommend immediate product demo focusing on Zendesk integration and healthcare compliance features."
}

Viewing Logs

In the Orq.ai Studio, you can view the execution logs for each agent in your 3-agent prospect qualification system. Navigate to the Agents section and select each agent to view detailed logs of all runs, including:

Ingestion Agent Logs: View all multi-turn conversations with context preservation via Task IDs
Qualification Agent Logs: Analyze the qualification analysis and scoring results
Insertion Agent Logs: Monitor tool execution and CRM insertion attempts

You can click on any log entry to view detailed information about the execution, including input parameters, agent responses, and any tool calls made during the run.

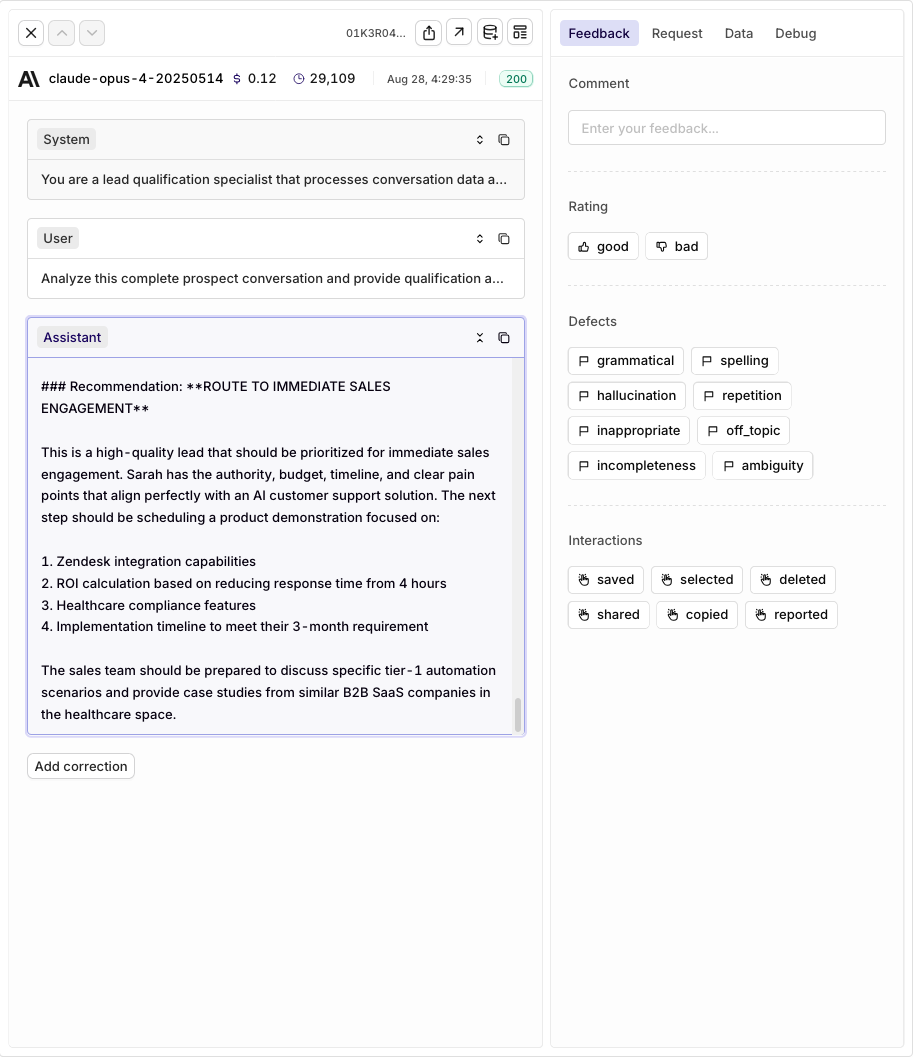

Logs for the qualifying agent

To learn more about agents and their capabilities, see Agents API Documentation.

Key Benefits

Context Persistence: Task IDs maintain conversation state across multiple turns without passing full history
Specialized Agents: Each agent optimized for its specific role (ingestion, qualification, insertion)
Modern Framework: Built on A2A Protocol for standardized agent-to-agent communication
Tool Integration: Seamless function tool integration for CRM and external system operations
Scalable Architecture: Independent agents enable parallel processing and easy optimization

Next Steps: Learn about Multi-Agent Workflows and Tool Support to expand your pipeline capabilities.

Cookbooks

Common Architecture

Learn

AI Agent

Objective

Use Case

Prerequisite

Multi-Agent Workflow Architecture

Creating a CRM Insert Tool

CRM Insert Tool Configuration

Handling Tool Calls

Creating Three Specialized Agents

1. Create the Ingestion Agent

Option A: Using the Agents API

Option B: Using the Studio UI

2. Create the Qualification Agent

Option A: Using the Agents API

Option B: Using the Studio UI

3. Create the Insertion Agent

Option A: Using the Agents API

Option B: Using the Studio UI

Integrating with the SDK

Output

Viewing Logs

Key Benefits

Cookbooks

Common Architecture

Learn

​Objective

​Use Case

​Prerequisite

​Multi-Agent Workflow Architecture

​Creating a CRM Insert Tool

​CRM Insert Tool Configuration

​Handling Tool Calls

​Creating Three Specialized Agents

​1. Create the Ingestion Agent

​Option A: Using the Agents API

​Option B: Using the Studio UI

​2. Create the Qualification Agent

​Option A: Using the Agents API

​Option B: Using the Studio UI

​3. Create the Insertion Agent

​Option A: Using the Agents API

​Option B: Using the Studio UI

​Integrating with the SDK

​Output

​Viewing Logs

​Key Benefits

Objective

Use Case

Prerequisite

Multi-Agent Workflow Architecture

Creating a CRM Insert Tool

CRM Insert Tool Configuration

Handling Tool Calls

Creating Three Specialized Agents

1. Create the Ingestion Agent

Option A: Using the Agents API

Option B: Using the Studio UI

2. Create the Qualification Agent

Option A: Using the Agents API

Option B: Using the Studio UI

3. Create the Insertion Agent

Option A: Using the Agents API

Option B: Using the Studio UI

Integrating with the SDK

Output

Viewing Logs

Key Benefits
