What are Traces

With Traces, dive into the workflow of each model generation and understand the inner workings of an LLM call on orq.ai. Traces correspond to events within the generations. Events within a Deployment can be various:

Creating Traces

Traces are automatically generated when using Orq.ai Deployments. Create custom traces for application code using framework instrumentation or the Orq.ai SDK.

Framework Instrumentation

For popular AI frameworks and libraries, use automatic instrumentation with OpenTelemetry:

Framework Integrations

Explore automatic instrumentation for OpenAI, LangChain, LlamaIndex, CrewAI, Autogen, and 15+ other frameworks with OpenTelemetry integration.

Custom Tracing using the @traced decorator

For custom functions or application workflows, use the @traced decorator from the Python SDK. It works with both synchronous and async functions:
import os
from orq_ai_sdk import Orq
from orq_ai_sdk.traced import traced

@traced(name="process_document", type="agent")
def process_document(doc_id: str):
    result = {"status": "processed", "doc_id": doc_id}
    return result

@traced(name="fetch_context", type="retrieval")
def fetch_relevant_context(query: str):
    return {"context": "relevant information", "sources": ["doc1", "doc2"]}

@traced(name="format_response", type="function")
def format_response(raw_output: str, metadata: dict):
    return {"formatted": raw_output.strip(), "metadata": metadata}

@traced(name="document_pipeline", type="agent")
def document_pipeline(orq, doc_id: str):
    doc = process_document(doc_id)
    context = fetch_relevant_context("user query")

    response = orq.agents.responses.create(
        agent_key="simple-agent",
        background=False,
        message={
            "role": "user",
            "parts": [
                {
                    "kind": "text",
                    "text": f"Summarize this document: {doc['status']}. Context: {context['context']}"
                }
            ]
        }
    )

    return format_response(response.output[0].parts[0].text, {"doc_id": doc_id})

with Orq(api_key=os.getenv("ORQ_API_KEY")) as orq:
    result = document_pipeline(orq, "doc-123")
    print(result)
The result is a single trace with each decorated function appearing as a nested span:

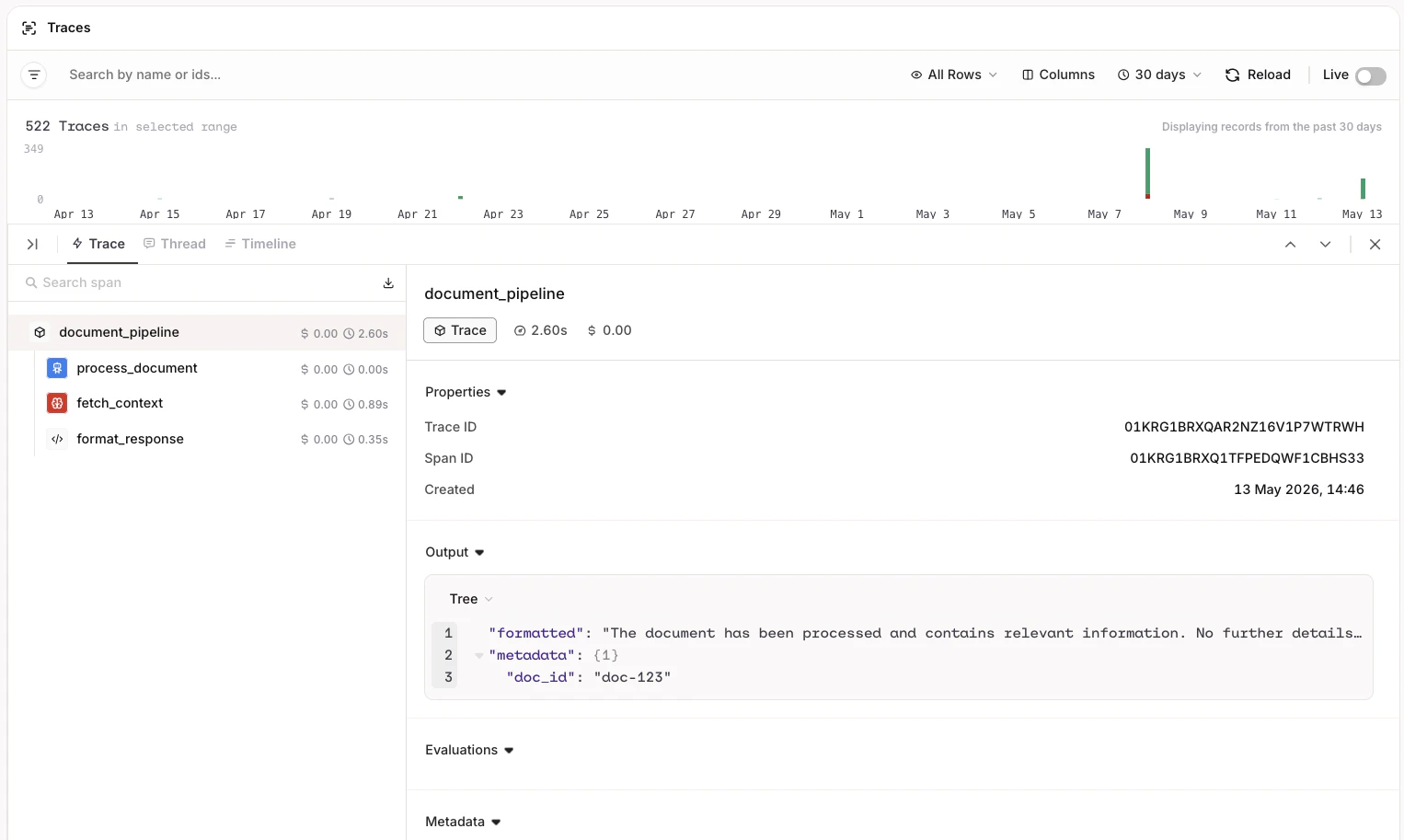

Trace view showing a document_pipeline root span with process_document, fetch_context, and format_response nested as child spans, each with latency and token usage.
The @traced decorator supports the following span types:
TypeDescription
agentA high-level orchestration step or agent workflow
embeddingAn embedding generation operation
functionA general-purpose function or processing step
llmA direct LLM API call
retrievalA retrieval or knowledge lookup operation
toolAn external tool call
Capture or suppress inputs/outputs with capture_input and capture_output, and attach custom metadata with the attributes parameter:
@traced(
    name="process_document",
    type="agent",
    capture_input=False,
    capture_output=False,
    attributes={"version": "1.0", "env": "production"}
)
def process_document(doc_id: str):
    ...

How to Lookup Traces

To find traces, head to the AI Studio and to the Traces section.
Visualizing traces
Explore traces for each action taken during a generation:
  • The left column shows the list of Traces available.
  • By selecting a trace, the middle column opens, showing the hierarchy of events shown in order of execution.
  • By selecting a single trace, the right column opens, showing details for the specific step.

Trace Views

Each trace can be inspected in three views to suit different debugging and analysis needs.
The Trace view shows the full execution tree for a single run. Each step is displayed hierarchically, including LLM calls, tool invocations, knowledge retrievals, and memory interactions. Use this view to inspect inputs, outputs, token usage, and latency at every step.For multi-agent runs, the hierarchy renders as an agent graph: parent agents and their sub-agent calls are shown as a nested tree, making it easy to follow how work was delegated across agents and where time was spent.

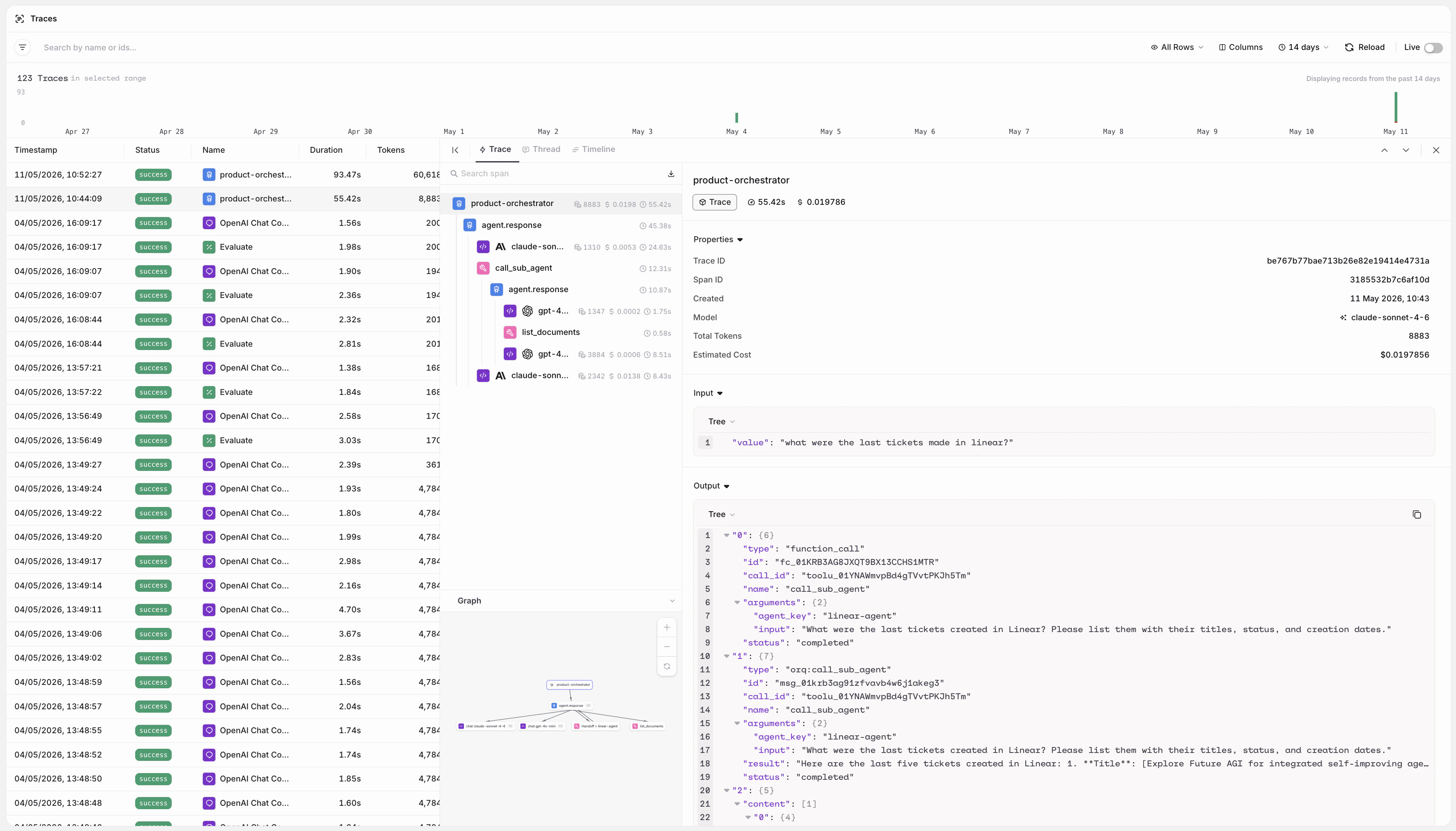

Trace view in Orq.ai showing a multi-agent call graph: product-orchestrator delegates to agent-compositor, which calls agent-response, call_sub_agent, find_documents, and router-cache-agent. The right panel shows span properties, input, and output for the selected step.
Erroring Traces are shown with a icon.
Manually evaluate responses using Human Reviews directly on individual spans. Human Reviews defined in the project are available on all spans automatically. Learn more in Human Review.

Viewing Errors

Traces that encountered an error are marked with a red error status badge in the list. Use the Status filter to scope the list to errors only and identify failing traces quickly.

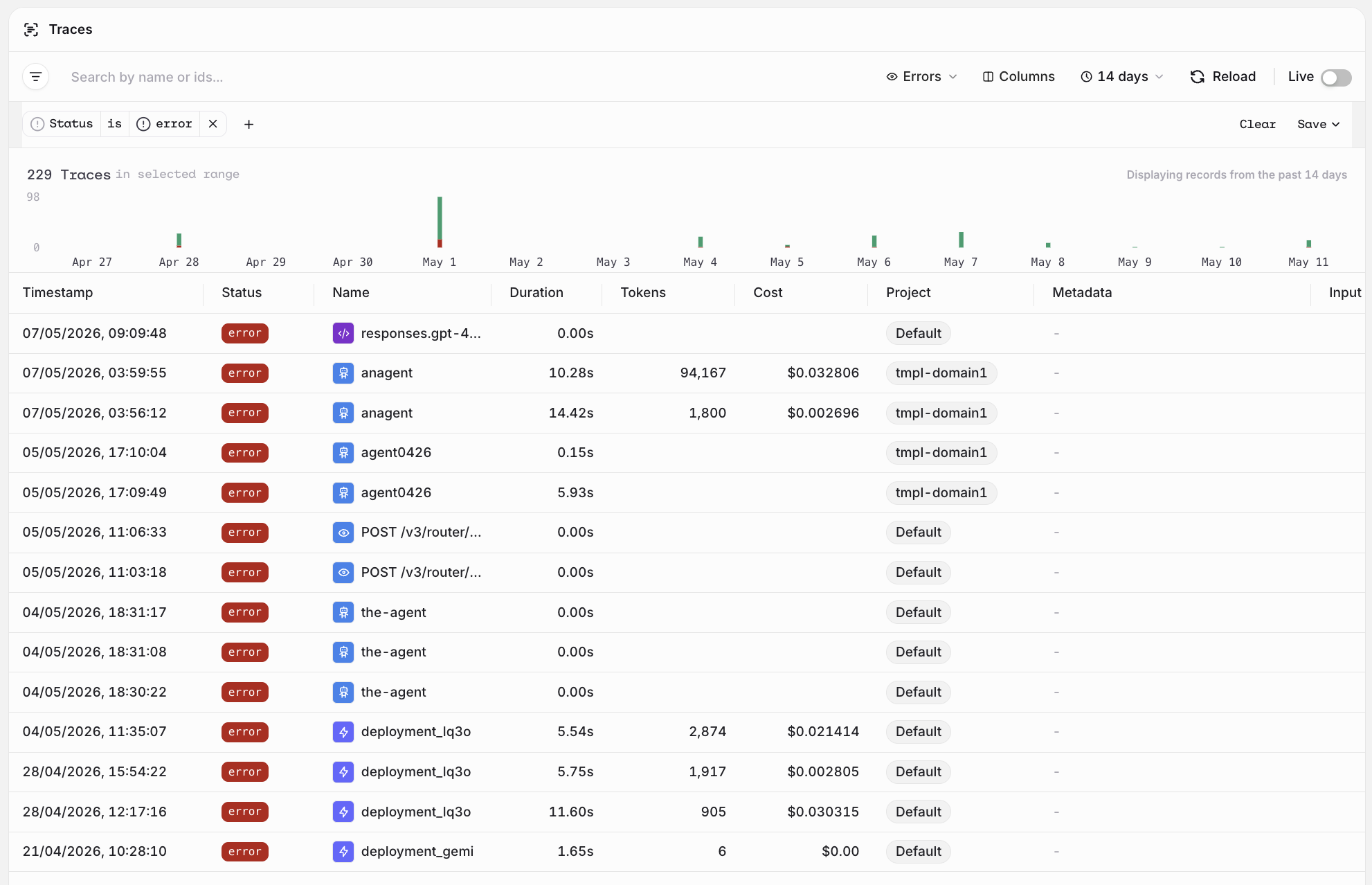

Traces list filtered to show only erroring traces, with red error badges on each row and a Status filter chip applied.
The Status filter combines with any other filter, for example:
  • Filter by Status: error and an Identity to see all errors for a specific user.
  • Combine with Project or Metadata to narrow down failures to a particular environment or deployment.

Filtering Traces

Click next to the search bar to open the filter menu. Select a category to expand a searchable list of values and check one or more to apply.

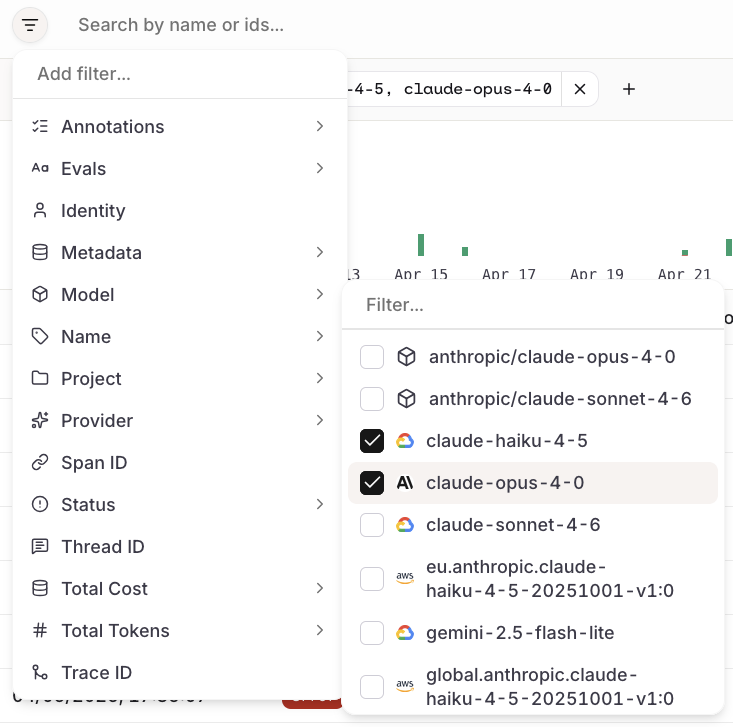

Trace filters
When working with Agents, access traces directly from the Agent page with automatic filtering for that specific agent.
The following filter categories are available:
FilterDescription
AnnotationsFilter by annotation labels applied to traces.
EvalsFilter by evaluator results attached to traces.
IdentityFilter by the identity that triggered the trace.
MetadataFilter by metadata fields attached to traces.
ModelFilter by the model used in the trace.
NameFilter by trace name.
ProjectFilter by the project the trace belongs to.
ProviderFilter by the model provider.
Span IDFilter by a specific span identifier.
StatusFilter by the status of the trace (e.g. error, success).
Thread IDFilter by the thread the trace belongs to.
Total CostFilter by the total cost of the trace.
Total TokensFilter by the total token count of the trace.
Trace IDFilter by a specific trace identifier.
Multiple filters can be combined. To remove a filter, click next to it in the filter bar.

Configuring Column

Columns can be enabled and toggled to display more available data in the traces list.
The above fields are displayable on the traces list.

Creating Custom Views

Save frequently used filter combinations as reusable views:
  1. Set the desired filters
  2. Click All Rows (top right)
  3. Select Create New View
  4. Enter a title for the view
  5. Optionally check Set view private (default is shared with project members)
  6. The filtered view is saved and accessible from the All Rows dropdown
A custom view filtering for all Errors is available by default.
Traces view dropdown showing a default Errors view alongside any custom saved views.

Threads

Threads

Visualize conversation history as Threads to follow the full sequence of messages across an agent session.
